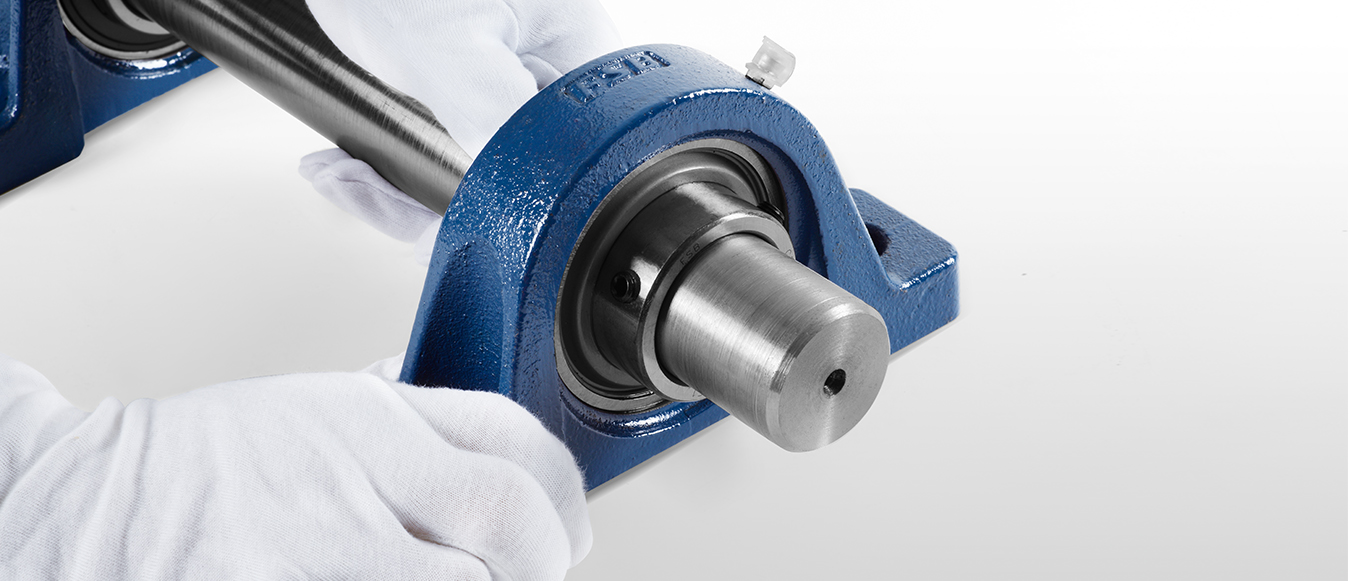

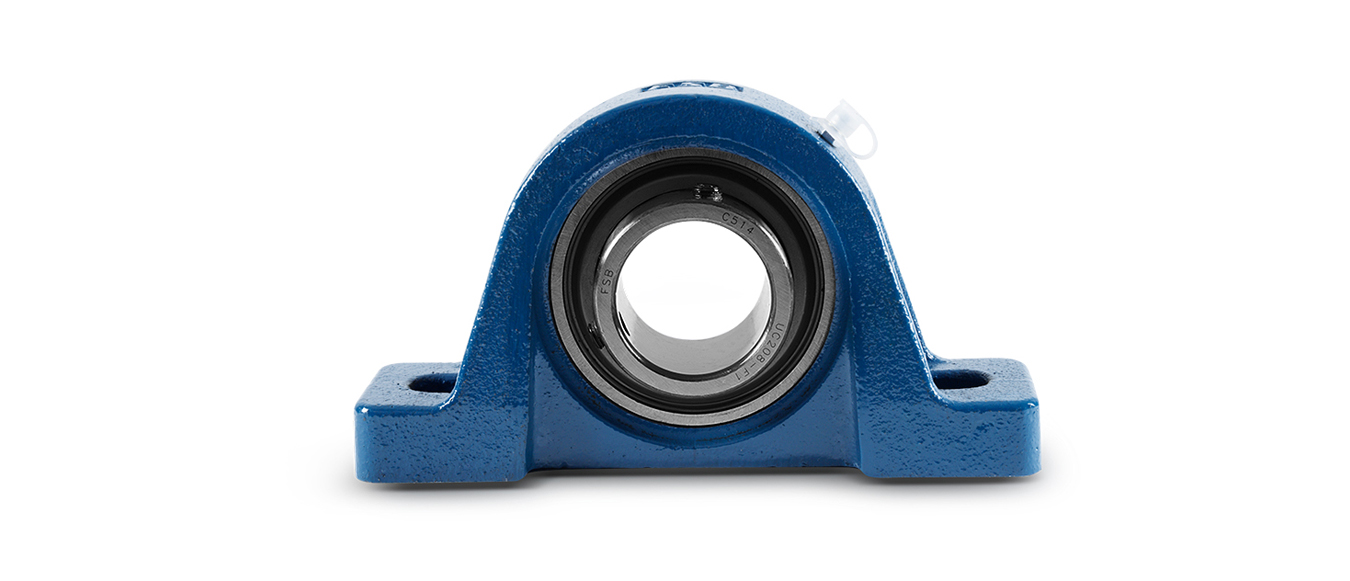

装置保护
精准地进行货物就可以如果你认定真不错的货物休会。

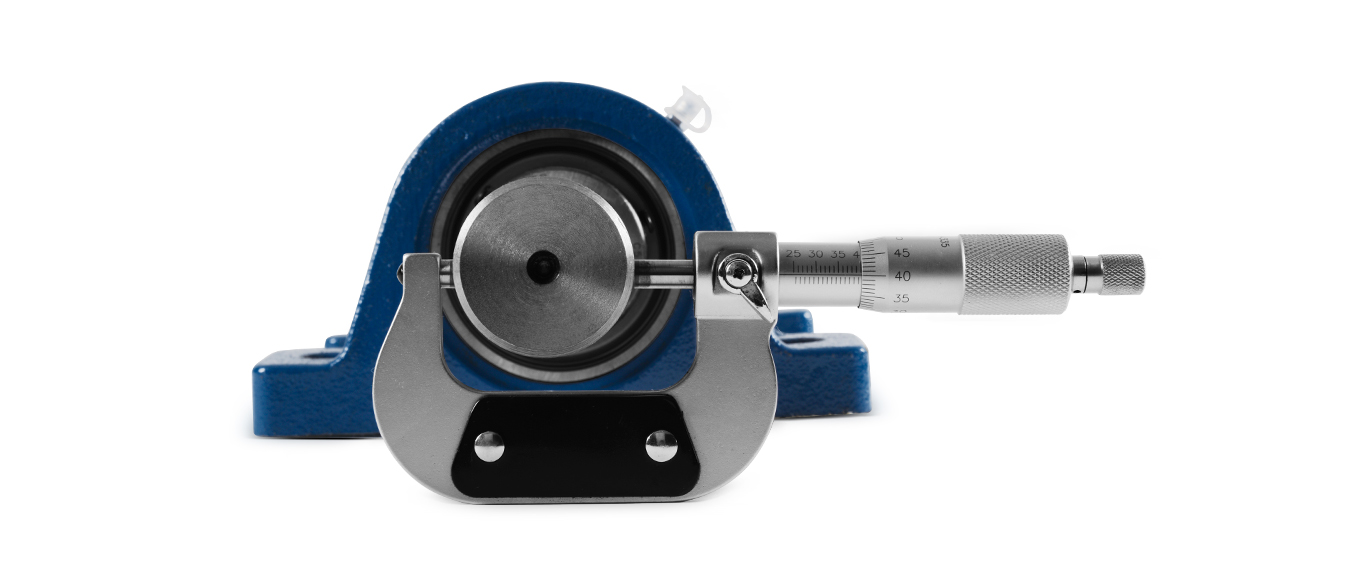

装置轴公役保举表
| 轴径 | UC,SB系列 | ||||||
| 轴保举公役(h7) | |||||||
| mm | in | μm | in | ||||
| > | ≤ | > | ≤ | max | min | max | min |
| 10 | 18 | 7/16 | 11/16 | 0 | -18 | 0 | -0.0007 |
| 18 | 30 | 3/4 | 1-1/8 | 0 | -21 | 0 | -0.0008 |
| 30 | 50 | 1-3/16 | 1-15/16 | 0 | -25 | 0 | -0.0010 |
| 50 | 80 | 2 | 3-1/8 | 0 | -30 | 0 | -0.0012 |
| 80 | 120 | 3-3/16 | 4-11/16 | 0 | -35 | 0 | -0.0014 |
| 120 | 180 | 4-3/4 | 7-1/16 | 0 | -40 | 0 | -0.0016 |

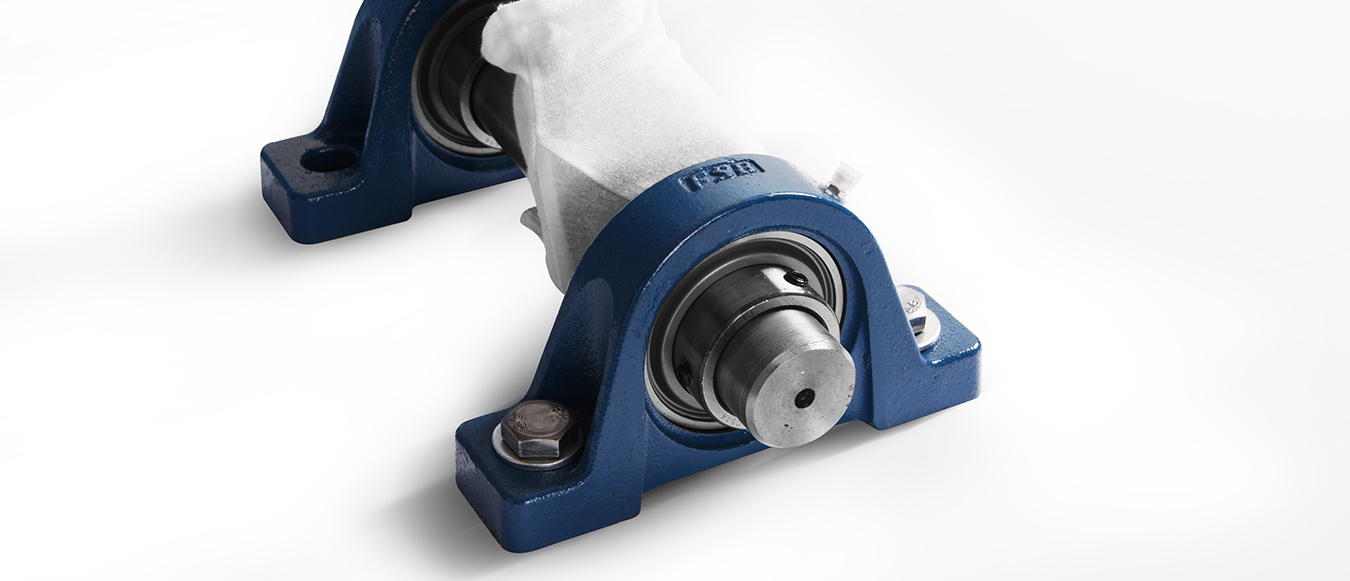

海角网页版 座装置螺栓锁紧扭矩保举表
| 螺栓公称型号 | 锁紧扭矩(±10%) | |||
| mm | in | N.m | lbf.in | lbf.ft |
| M6 | 1/4 | 4.0 | 33 | 3 |
| M8 | 5/16 | 8.0 | 71 | 6 |
| M10 | 3/8 | 17 | 151 | 13 |
| M12 | 7/16 | 29 | 257 | 21 |
| M14 | 1/2 | 47 | 416 | 35 |
| M16 | 5/8 | 73 | 646 | 54 |
| M18 | - | 107 | 947 | 79 |
| M20 | 3/4 | 145 | 1280 | 107 |
| M22 | 7/8 | 200 | 1770 | 148 |
| M27 | 1 | 372 | 3290 | 275 |
| M30 | 1-1/8 | 500 | 4430 | 369 |
| M33 | 1-1/4 | 690 | 6110 | 509 |
| M36 | 1-3/8 | 880 | 7790 | 649 |

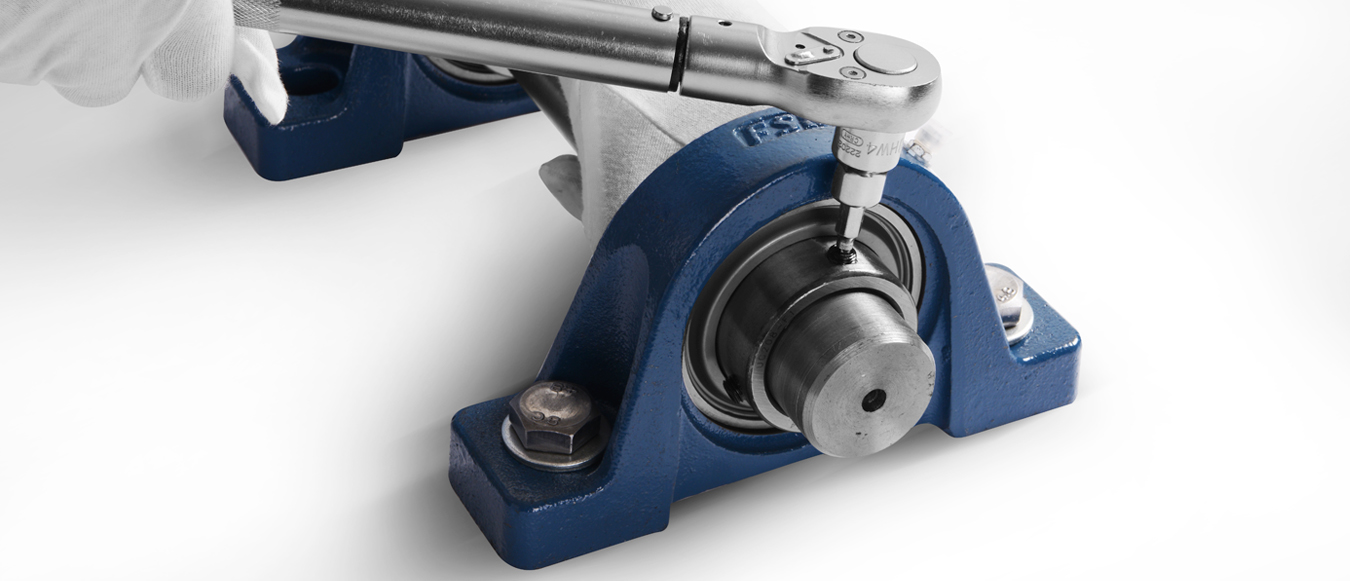

止动顶丝锁紧扭矩保举表
| 顶丝公称型号 | 锁紧扭矩 | 合用型号 | ||||||
| mm | in | N.m | lbf.in | lbf.ft | UC200 | UCX00 | SB200 | UC300 |
| M5×0.8 | 10-32UNF | 3.0 | 27 | 2.2 | 201-203 (SΦ40) | 201-203 | ||
| M6×1.0 | 1/4-28UNF | 4.0 | 35 | 3 | 201-206 | X05 | 204-206 | 305-306 |
| M8×1.0 | 5/16-24UNF | 9 | 75 | 6 | 207-209 | X06-X08 | 207-211 | 307 |
| M10×1.25 | 3/8-24UNF | 18 | 155 | 13 | 210-213 | X09-X12 | 212 | 308-309 |
| M12×1.5 | 7/16-20UNF | 28 | 248 | 21 | 214-218 | X13-X17 | 310-314 | |
| M14×1.5 | 1/2-20UNF | 35 | 310 | 26 | X18 | 315-316 | ||
| M16×1.5 | 5/8-18UNF | 56 | 496 | 41 | 220 | X20 | 317-319 | |
| M18×1.5 | 5/8-18UNF | 62 | 549 | 46 | 320-324 | |||
| M20×1.5 | 3/4-16UNF | 83 | 735 | 61 | 326-328 | |||
